HydroMax®

Hydronic Efficiency to the Max™
Amtrol’s indirect-fired water heaters use the existing energy in a boiler to minimize fuel use, save energy and maximize hot water output. BoilerMate® was the original Amtrol water heater and is still a great value. HydroMax represents the next generation featuring additional functionality and an appliance–like appearance. Its Ener-G-Net™ control (optional) provides built-in diagnostics, energy saving user modes and easy programming.

  • FEATURES
  • SPECIFICATIONS
  • COMPARE
  • BROCHURES
  • MANUAL & SUBMITTALS
  • VIDEOS

FEATURES

Triple Shell Construction

Bimodal HPDE Poly Bottle

  • Corrosion-proof material is impervious to chlorides, scale and aggressive water; no anode rod required.
  • Provides clean, fresh water.
  • Advanced, high-temp polymer rated to 180ºF.

Energy Efficient Urethane Insulation

  • Reaction Injection Molded (RIM) process eliminates gaps and voids.
  • Form fitted to bottle and outer shell for enhanced efficiency.

Deep Drawn Pressure Shell

  • Twice the strength of traditional construction.
  • High gloss finish withstands damp and harsh environments.

Easy Installation

Copper Rough-In Piping

  • Factory installed, Type M copper; no threaded fittings.
  • Enclosed housing for safety and appearance.

T&P Blowdown Tube

  • Pre-bent and pre-cut to code required length.

Pre-Installed Drain Valve

  • Sediment trap captures and flushes debris.

Energy Efficient

Hi-Delta Heat Exchanger

  • Finned design for effective heat transfer.
  • Removable for cleaning and service.

Integrated Heat Trap

  • Patented soft-seat design.
  • Keeps stored hot water in the tank.

Turbulator Circulation Device

  • Agitates water to reduce sediment buildup.

DuraBase Composite Stand

  • Engineered to withstand over 2,500 lbs.
  • Eliminates the need for cement blocks.

Choice of Mechanical or Digital Temperature Control

  • Mechanical aquastat provides reliable simplicity.
  • Ener-G-Net Digital Control for electronic accuracy.

Flexible Warranty Protection Plan

  • 7-Year Limited Warranty.
  • Limited Lifetime Warranty Upgrade Option Available.

SPECIFICATIONS

Construction

  • Shell: High Strength Steel
  • Bottle: Bimodal High Density Polyethylene (HDPE)
  • Insulation: Molded Urethane Fits Bottle and Outer Shell
  • Heat Exchanger: Finned Construction; Hi-Delta T
  • Heat Trap: Patented Soft-Seat Design
  • Stand: DuraBase Composite
  • Finish: Tuf-Kote™ HG High Gloss Black
  • Control: Mechanical or Ener-G-Net Digital
  • Turbulator<sup>®</sup>: Pre-Installed
  • Top Housing: Pre-Installed
  • T&P; Drain Valve: Pre-Installed
  • Blowdown Tube: Included Standard

Performance

  • Max. Operating Temperature: 150º F (66º C)
  • Max. Working Pressure: 150 PSIG (10.3 bar)
  • Warranty: 7-Year Limited; Limited Lifetime Upgrade Available

Application

  • Provides hot water using boiler energy as the source.
  • Available in 41 and 80 gallon sizes.
  • Removable coil for easy cleaning and service.

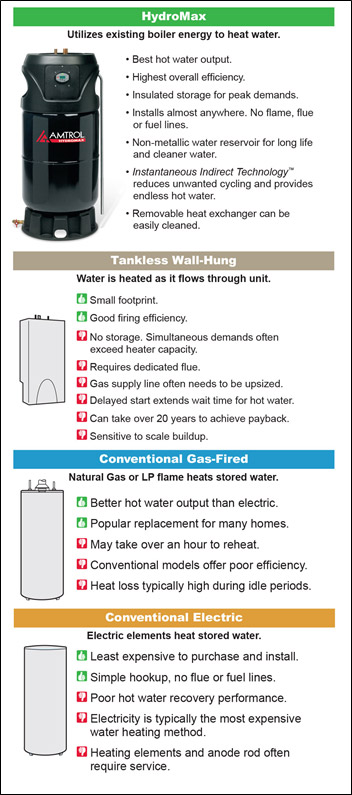

Compare HydroMax to other Water Heaters


Click Image to Enlarge

BROCHURES


Brochure


Homeowner Brochure


Ener-G-NET Flyer

MANUAL & SUBMITTALS


Installation & Operation Instructions

VIDEOS
