Other Amtrol Well Tanks

Reliable Performance at an Affordable Price

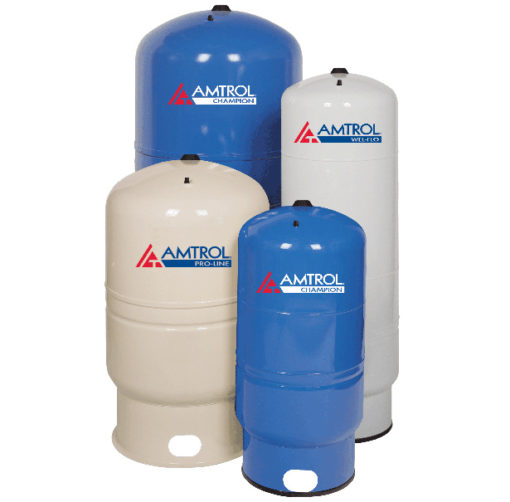

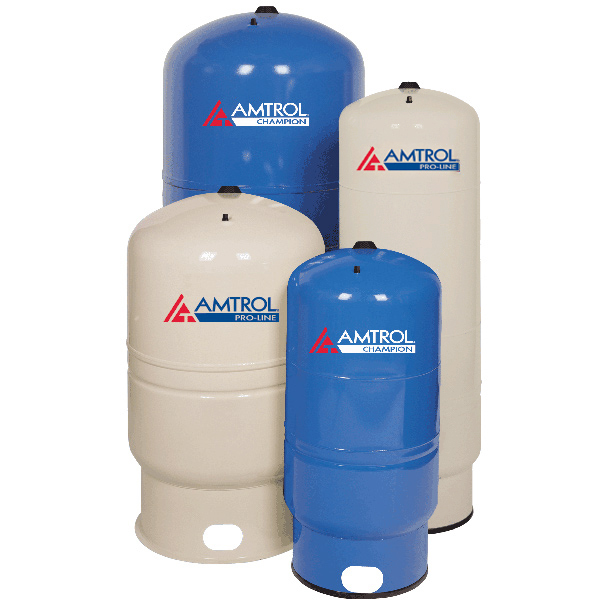

Champion®, Wel-Flo® and Pro-Line® fixed diaphragm well tanks are the high quality alternative to other designs. They deliver reliable performance at an affordable price. All feature 125 PSIG working pressure, a stainless steel connector, patented Turbulator® and a 5-year limited warranty. These brands represent an outstanding value compared to competitive well tanks.

  • FEATURES
  • SPECIFICATIONS
  • BROCHURES
  • MANUAL & SUBMITTALS

FEATURES

  • 125 PSIG Working Pressure.
  • Strongest Tank Design Featuring Deep Drawn Steel and Multi-Dome Construction.
  • Welded Steel Base is Stronger than Plastic.
  • Heavy Duty Butyl Diaphragm.
  • Patented Turbulator® Water Circulation Device.
  • Polypropylene Liner meets NSF® International Standard 61.
  • Welded Air Stem to Help Eliminate Leaks.
  • Stainless Steel System Connection.
  • 5-Year Limited Warranty.

SPECIFICATIONS

Construction

  • Shell: Deep Drawn Steel
  • Diaphragm: Butyl
  • Liner: Polypropylene
  • System Connection: Stainless Steel
  • Stand: Steel
  • Finish: Champion: Dark Blue, Wel-Flo: Light Gray, Pro-Line: Tan
  • Water Circulator: Patented Turbulator®
  • Air Valve: Projection Welded
  • Factory Precharge: 38 PSIG (2.6 bar)

Performance

  • Max. Operating Temperature: 200º F (93º C)
  • Max. Working Pressure: 125 PSIG (8.6 bar)
  • Max. Relief Valve Setting: 100 PSIG (6.9 bar)
  • Warranty: 5-Year Limited

Application

  • Controls pump cycling in residential water systems.

BROCHURES

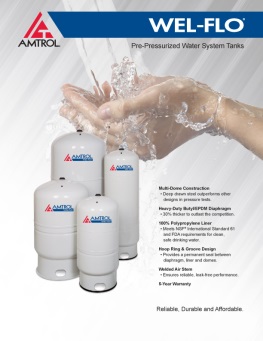

Champion

Wel-Flo

Pro-Line

MANUAL & SUBMITTALS


Installation & Operation Instructions
