Air & Dirt Elimination

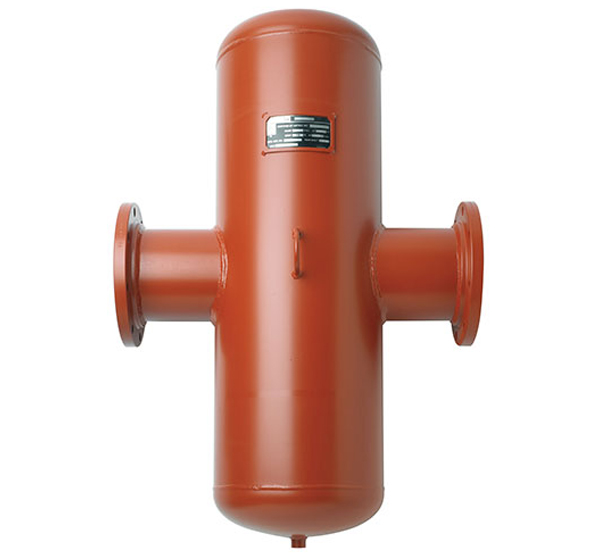

Amtrol ASME Air and Dirt Separators are designed to eliminate entrained air and remove dirt particles in closed loop, heating and chilled water systems. A patent-pending filter, consisting of five concentric stainless steel mesh screens, removes particles as small as 5 microns. All models feature a top connection for an air vent and a bottom connection for a blow-down valve.

  • FEATURES
  • SPECIFICATIONS
  • BROCHURES
  • MANUAL & SUBMITTALS

FEATURES

  • Patent-Pending Filter Separates Dirt and Debris as Small as 5 Microns to Reduce System Wear.
  • Available in 2” through 12” Sizes.
  • Max. Working Pressures Offered: 125 and 150 PSIG.
  • Max. Operating Temperature: 450º F.
  • 3-Year Limited Warranty.

SPECIFICATIONS

Construction

  • Shell: ASME Approved Steel
  • Flanges: ASME 150 lb.
  • Filter: Patent Pending – Stainless Steel
  • Finish: Red Oxide Primer

Performance

  • Max. Operating Temperature: 450º F (232° C)
  • Max. Working Pressure: 125 PSIG (8.6 bar) and 150 PSIG (10.3 bar)
  • Warranty: 3-Year Limited

Application

  • For use in closed heating and chilled water systems.
  • Eliminates entrained air to enhance pump performance.
  • Patent pending filter removes harmful debris from system.
  • Meets all ASME Section VIII, Division 1 code standards.

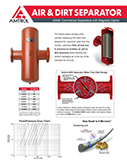

BROCHURES
